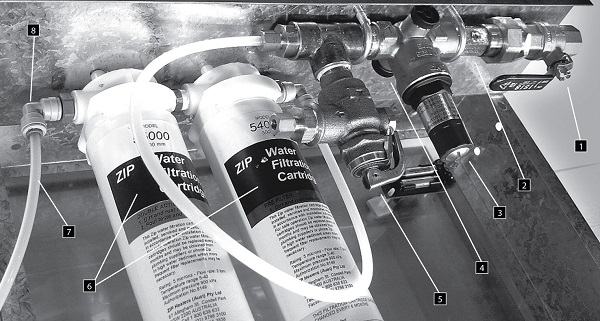

Item Part No. Description
1 91211 Ball Valve
2 99039 Restrictaflow
3 90461 Valve Assembly kit
4 90461 Rye - Double check Valve kit
5 90346 RMC - H50 PR Valve
6 54000/55000 Cuno - Filter PF/DA/TA
7 John Guest Tube - Bu/Red/Wh
8 John Guest Fittings
88245 Valvetrain Chill Fountain
88239 Valvetrain Chill Tap
Chill Fountain - Basin

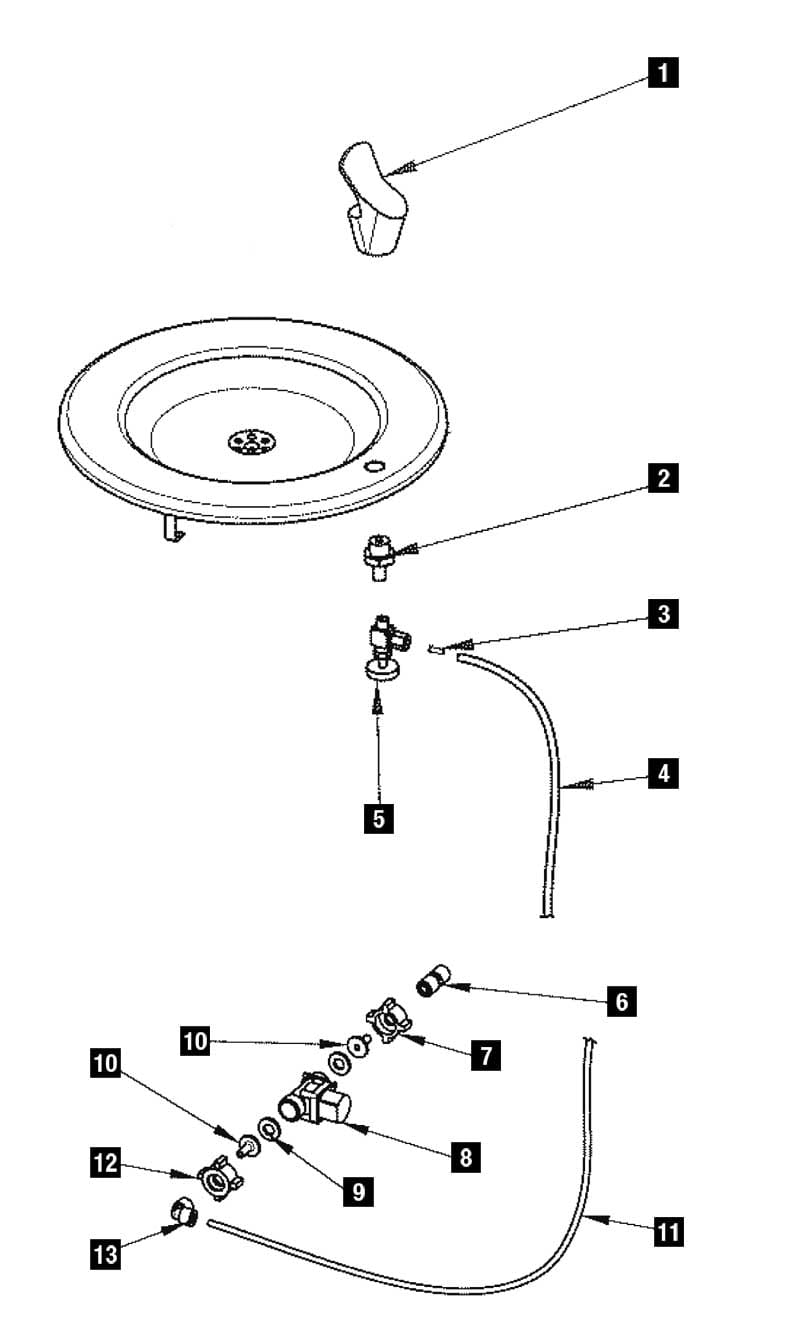

Item Part No. Description
1 90572 Handicapped Bubbler
2 Adapter
3 Insert
4 J.G.Tube - Bu/Red/Wh
5 90573 Needle Valve
6 Various John Guest fitting
7 Valve Nut
8 90010 Solenoid Valve
9 Valve washer
10 Valve stem fitting
11 J.G.Tube - Bu/Red/Wh
12 Valve Nut
13 Various John Guest fitting
90563 Blue switch
90582 Ambient Control Box
88263 Wiring loom bubbler to chiller (also fits double blue switch bowls)
88149 Front panel C/F/W/C & Adult
88451 Access Panel WM Chiller Child
99300 Cam Lock w/key Type A37-1
99253 DoorTop C/F 1xLock W/Chair
99251 DoorTop C/F 1xLock W/Chair less Pilot Hole
83448 Chiller Box Complete CFCU-04
90031 PCB Chiller (2x PCB in each Chiller)
90819 Carafe Tap with short thread
88207 Drain Gasket
88194 Basin Arm Long W/Chair
91363 Basin Arm Kit CFBCF (1st Tier)
88460 Basin Arm Short (2nd Tier)
93485 40mm Elbow & Not Drain
Panels
90691 Bottom Panel Louvered
99253 Top Panel with Lock and Pilot Light hole
99251 Top Panel with Lock and No hole
88149 Centre Panel Adult or W/Chair
88451 Centre Panel Child
