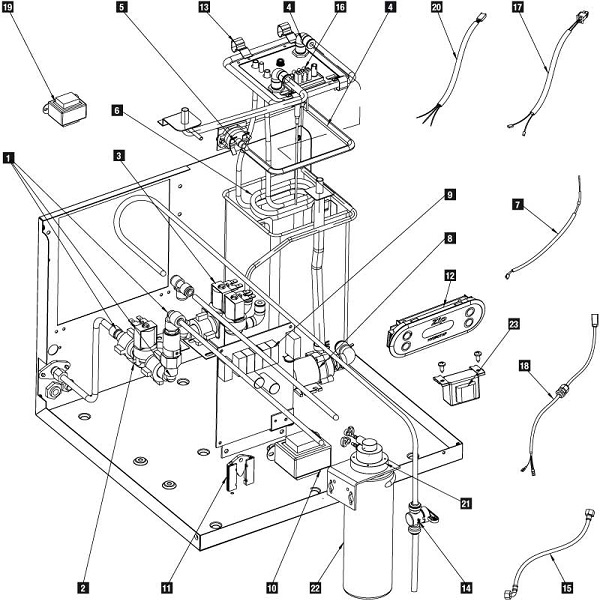

HT - 4 in 1 Boiler module
Item Kit No. Description
1 90613 Plumbing & Fittings Kit
2 90614 Safety Solenoid Kit
3 90615 Double Solenoid Kit
4 90616 Gasket & Elbows Kit Bc 100/125
4 90617 Gasket & Elbows Kit Bc 150/175
5 90579 Overload Kit
6 90618 Element 1500W Kit
6 90619 Element 1800W Kit
7 90620 Sensor Probe Kit Hot
8 90790 12 V Dc Pump Kit Hot
8 90788 Replacement 3L Tank & Pump Kit
8 90789 Replacement 5L Tank & Pump Kit
9 90622 Pcb Kit
10 90623 Transformer Kit
11 90624 Leak Sensor Kit
12 90625 Control Panel Kit
13 90130 Clips Kit
14 90628 Stop Valve & John Guest Fitting Kit Filter
14A 90717 Filter fittings kit
15 90056 Flexible Inlet Hose Kit
16 90629 Level Sensor Kit Hot Tank Bc 100/125
16 90630 Level Sensor Kit Hot Tank Bc 150/175
16 90690 Level Sensor Kit Hot Tank Bc 60/85
17 90186 Loom-Overload Kit
18 90190 Loom+Gland Main Pcb To Tap
19 90652 Transformer Kit Auxiliary Fan
20 90189 Loom-Level Sensor Kit Hot
21 99108 Filter Head Kit
22 91241 Cartridge-Five Micron Triple Action
22 90211 Filter Bypass
23 90791 Transformer Kit 12 V Dc Pump
90846 Acetyl Nut Kit
88375 Double non return valve
88449 Inlet assy BC 100/125 retrofit for service use only
88450 Inlet assy BC 150/175 retrofit for service use only
3 92301 Double Solenoid Kit 160/125+
3 92303 Double Solenoid Kit 240/175
6 92302 Element 3000W Kit
6 90946 Element 2000W Kit
90820 Sensor Pocket 3 Litre
90821 Sensor Pocket 5 Litre
9 92304 Pcb Kit 240/175 (15AMP)
HT - BC chiller unit

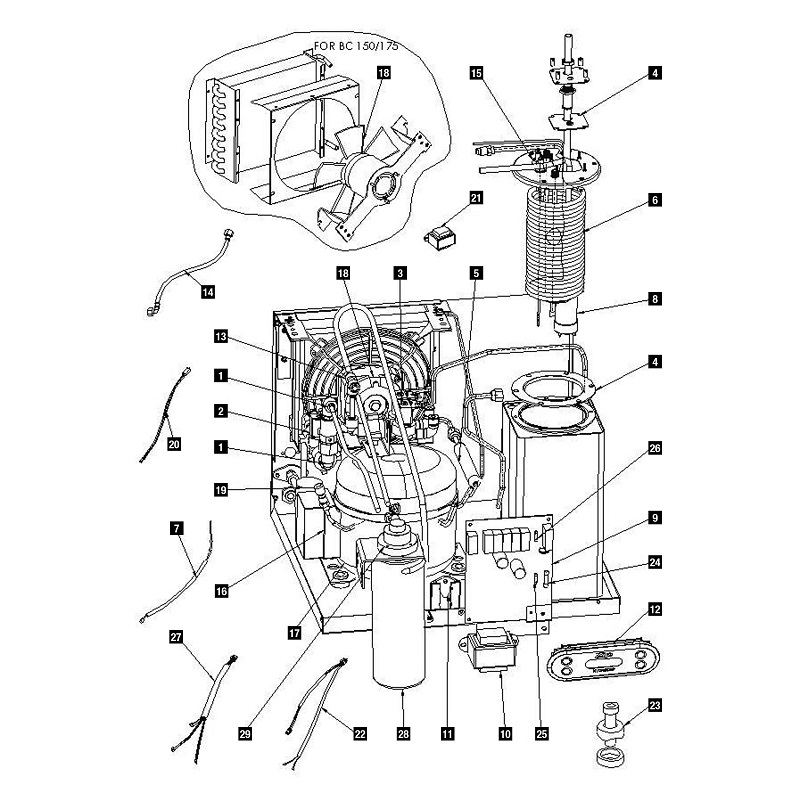

HT - 4 in 1 Chiller module
Item Kit No. Description
1 90613 Plumbing & Fittings Kit
2 90614 Safety Solenoid Kit
3 90615 Double Solenoid Kit
4 90631 Gasket & Elbows Kit Cold Tank
5 90626 Dryer-Filter Kit W/Nut & Tube
5 90660 Filter Dryer, solid core
6 90632 Evaporator Kit Bc 100/125
6 90641 Evaporator Kit Bc 150/175
7 90633 Sensor Probe Kit Cold
8 90634 Pump Kit Cold
9 90622 Pcb Kit Bc100/125 & Bc150/175
9 90663 Pcb Kit Bc60/85 - Domestic
9 90666 Pcb Kit B100f & B150f
10 90623 Transformer Kit
11 90624 Leak Sensor Kit
12 90625 Control Panel Kit
13 90628 Stop Valve & John Guest Fitting Kit Filter
13 90717 Filter kittings kit
14 90056 Flexible Braided Inlet Hose Kit
15 90635 Level Sensor Kit Cold Tank Bc 100/125
15 90627 Level Sensor Kit Cold Tank Bc 150/175
16 90636 Relay Compressor Kit Bc 100/125
16 90024 Relay Compressor Kit Bc 150/175
17 90637 Compressor Kit Bc 100/125
17 90023 Compressor Kit Bc 150/175
18 90639 Fan Motor Kit Bc 100/125
18 90640 Fan Motor Kit Bc 150/175
19 90437 Capacitor Kit Bc 100/125 60μF
19 90020 Capacitor Kit Bc 150/175 80μF
20 90185 Loom Level Sensor Kit
21 90652 Transformer Kit-Auxiliary Fan
22 90188 Loom-Solenoids Kit
23 90041 Ø35mm Chassis Punch
24 90671 3Ag - 10Amp Fuse
25 90670 2Ag - 10Amp Fuse
26 90669 2Ag - 1Amp Fuse
27 90187 Loom-Compressor To Fan Kit
28 91240 Sub Micron Ta Filter
28 91241 5 Micron Ta Filter
28 90211 Filter Bypass
29 99108 Filter Head Kit
99183 Fan & Cowl Kit - 100/125
90650 Auxiliary Fan+12V Plug Kit
90651 Auxiliary Fan w/ DIN Plug Kit
91298 Vent Grill Kit
91287 Cross Flow Fan Kit
91293 Cross Flow Fan (Fan Only)
91417 Adaptor Kit CFF (Prior to 20130423)
6 93147 Stainless Steel Evaporator 3 Litre
6 93148 Stainless Steel Evaporator 5 Litre
