Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find a Retailer
Finish

Please select a finish in order to add the item to cart.

RRP $ 5295 .00 incl. GST
Add to Cart
Boiling
Ambient
Filtered
H57785Z00NZ

Zenith HydroTap Design Range CELSIUS Boiling & Ambient Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required). The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration.

Manufacturing Code
H57785Z00NZ
Capacity
Residential

Product Details

Zenith HydroTap Design Range CELSIUS Boiling & Ambient Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required). The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration.

Specifications

Tap
Zenith HydroTap Design Range CELSIUS (Chrome)
Water Pressure
Min 200kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold and Hot
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
1.35kW 220-240V 50Hz
Power Supply
1 x 10 Amp socket outlet
Dimensions
W280mm x D313mm x H333mm
Product Approvals
WaterMark, RCM
Wels Rating
5 Star, 6.0 litres
Warranty
5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

  • Quick Guide
  • Instruction Manual
  • User Manual
  • HydroTap Clean Safety Data Sheet

Brochures

  • Product Brochure

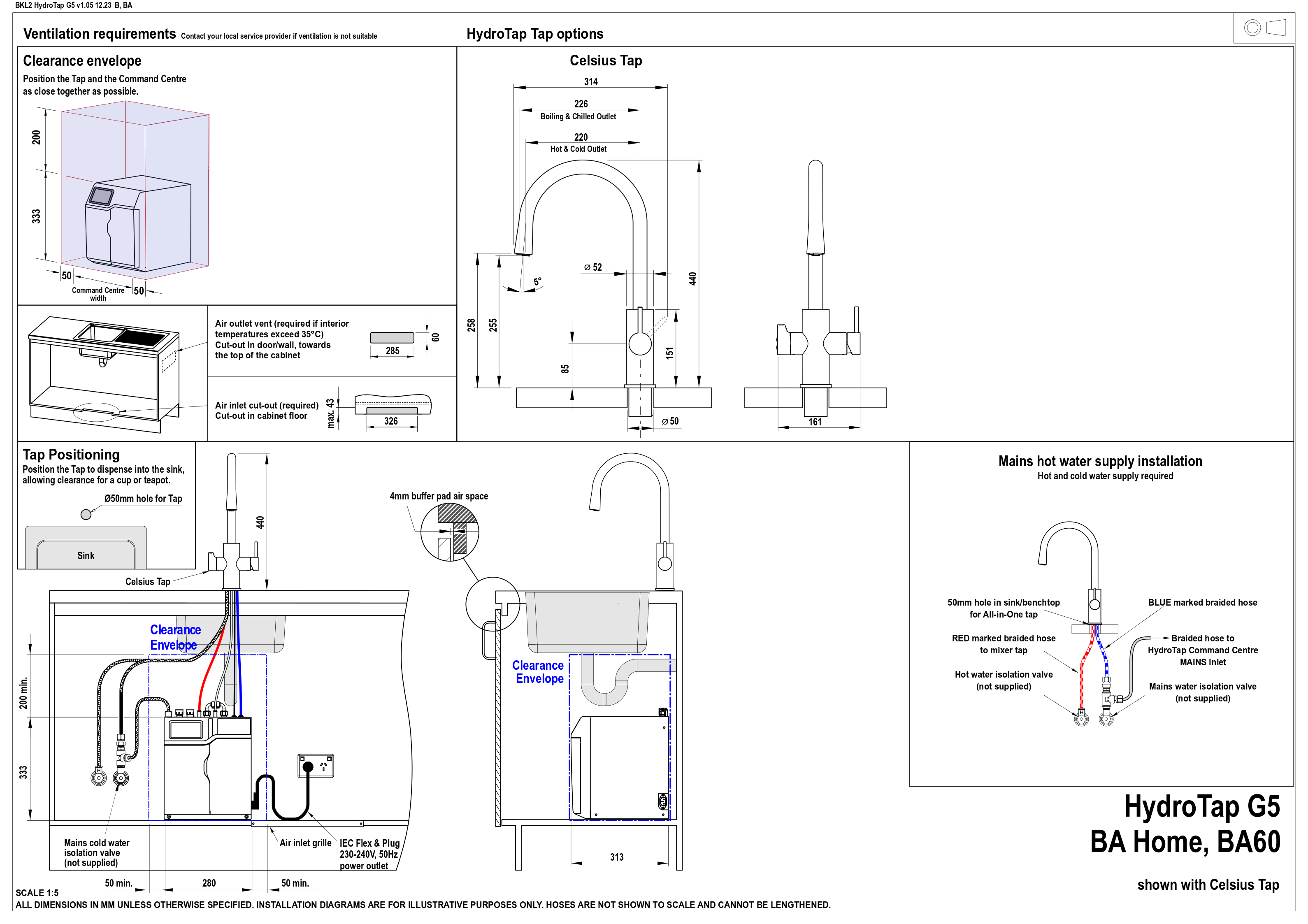

Installation

Installation Requirements

1. Installation and connection of your Zenith HydroTap must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.5. If you live in a hard water area, we recommend installation of a Zenith scale filtration kit.6. Installation by Zenith Professional Service can be arranged with a phone call or through www.Zenithwater.com'
  • Installation Detail

Certifications

Filter Performance Images
Filter Performance Data
Health Safety Image
Environment ISO Image
Quality ISO Image
ARC Image
ARC Download
CE Image
RCM Image
Watermark
Environmental Product Declaration Brochure
Environmental Product Declaration
WELS Certification

BIM Files

  • ArchiCAD Swift Globals Library
  • ArchiCAD Zenith Water Library
  • Revit Family
  • Revit Virtual Showroom Project File
