HydroTap Miniboil BA Classic Tap Chrome

Confirm Purchase


Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase


Please purchase a HydroTap first

Ok

Confirm Purchase


Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find a Retailer Request A Quote
Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zenith for more information.

Boiling
Ambient
Filtered
MB1716NZ

Zenith HydroTap Miniboil, Boiling and Ambient, Filtered water appliance provides instant access to filtered boiling and ambient water from a single, compact appliance which is perfect for smaller home kitchens.

Manufacturing Code
MB1716NZ
Capacity
Residential

Product Details

Zenith HydroTap Miniboil, Boiling and Ambient, Filtered water appliance provides instant access to filtered boiling and ambient water from a single, compact appliance which is perfect for smaller home kitchens.

Specifications

Tap

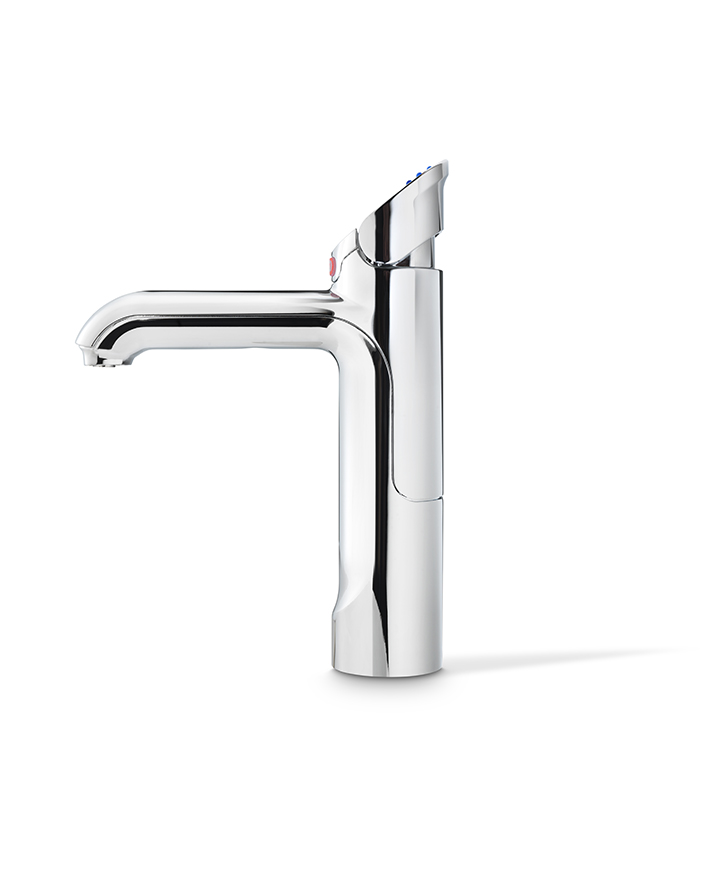

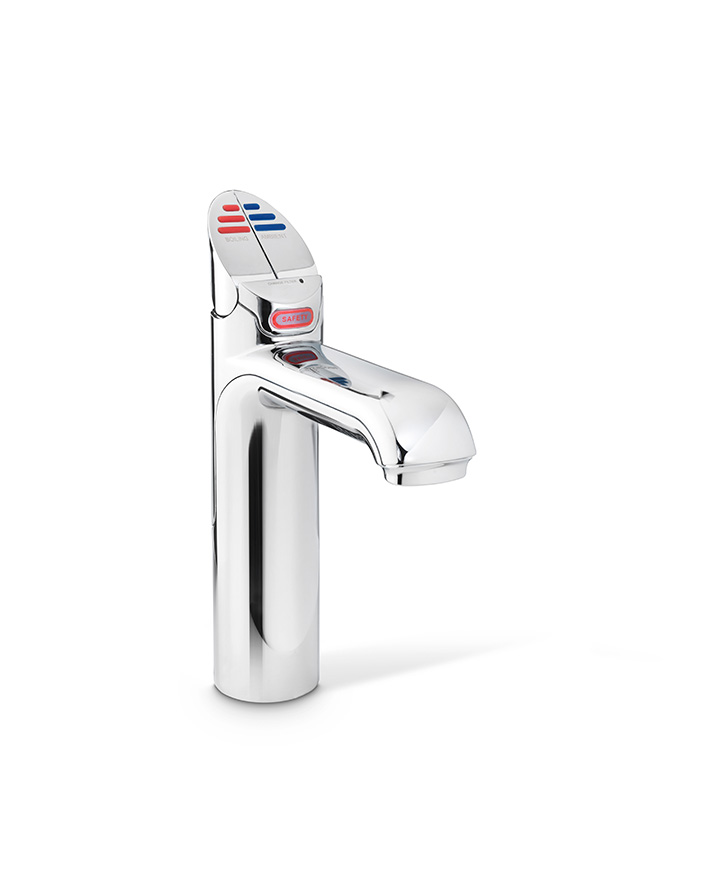

Zenith HydroTap Miniboil CLASSIC Tap (Chrome)
Water Pressure
Min 170kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
1.35kW 220-240V 50Hz
Power Supply
1 x 10 Amp socket outlet
Dimensions
W212mm x D269mm x H338mm
Product Approvals
WaterMark, RCM
Warranty
12 months

Manuals

  • Quick Guide
  • Instruction Manual
  • User Manual

Installation

Installation Requirements

1. Installation and connection of your Zenith HydroTap must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.5. If you live in a hard water area, we recommend installation of a Zenith scale filtration kit.6. Installation by Zenith Professional Service can be arranged with a phone call or through www.Zenithwater.com'
  • Installation Layout 3D/2D DWG
  • Installation Detail

Certifications

Filter Performance Images
Filter Performance Data
Health Safety Image
Environment ISO Image
Quality ISO Image
RCM Image
Watermark
Environmental Product Declaration Brochure
Environmental Product Declaration

BIM Files

  • ArchiCAD Swift Globals Library
  • ArchiCAD Zenith Water Library
  • Revit Virtual Showroom Project File
