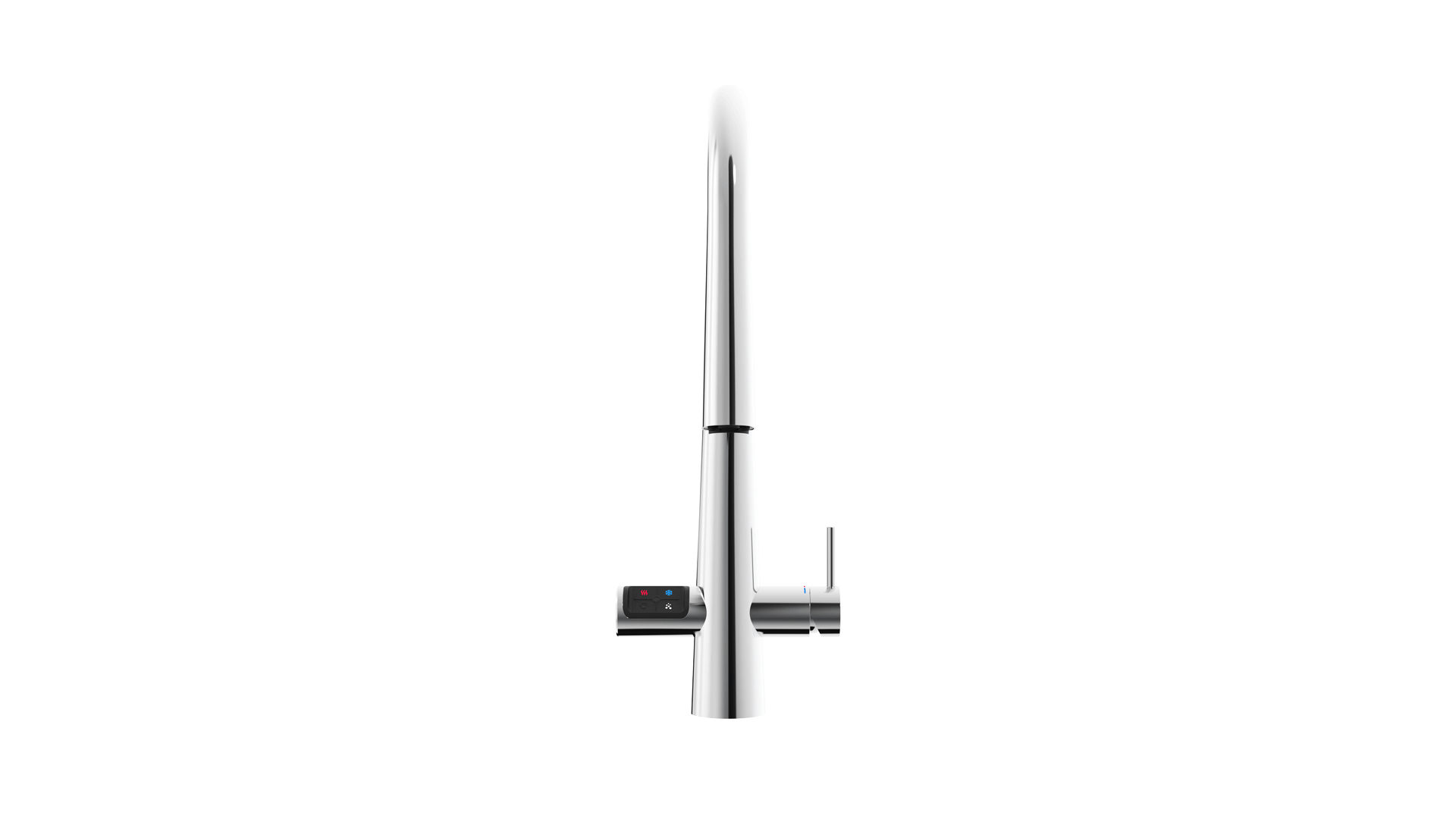

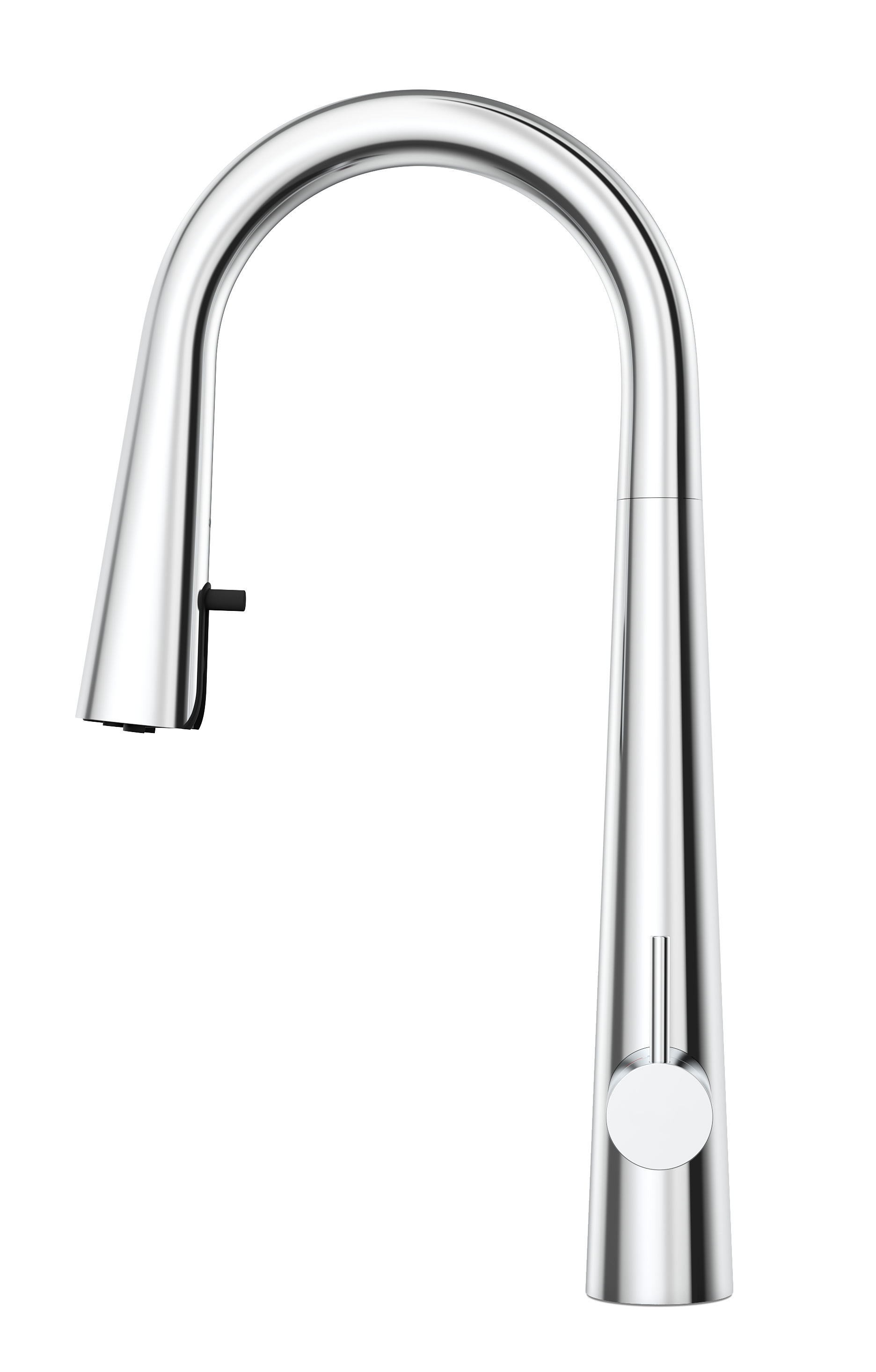

HydroTap G5 BCSHA Celsius Plus All-In-One Pull-Out Chrome

Confirm Purchase


Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase


Please purchase a HydroTap first

Ok

Confirm Purchase


Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find your Specialist Retailer

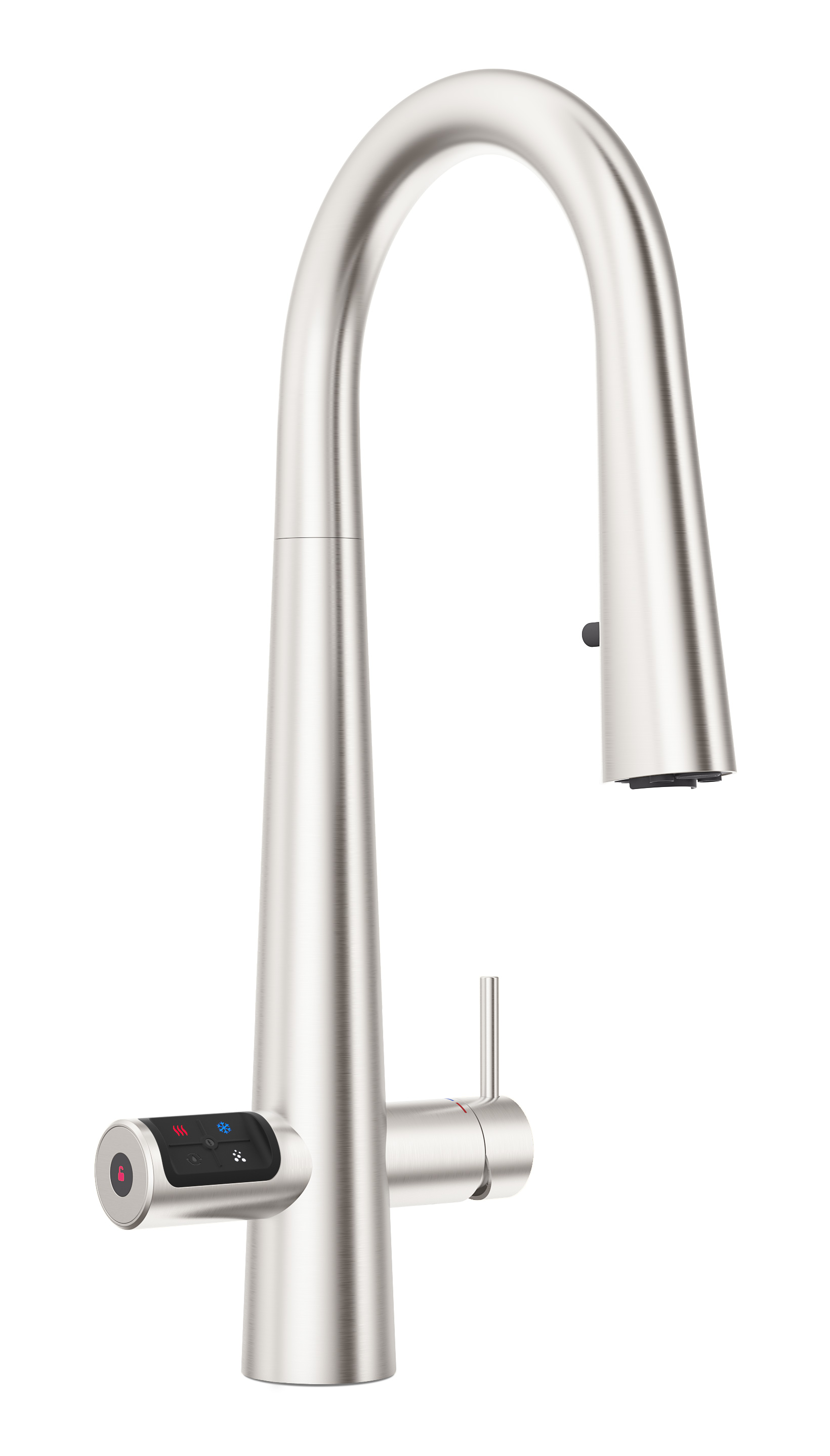

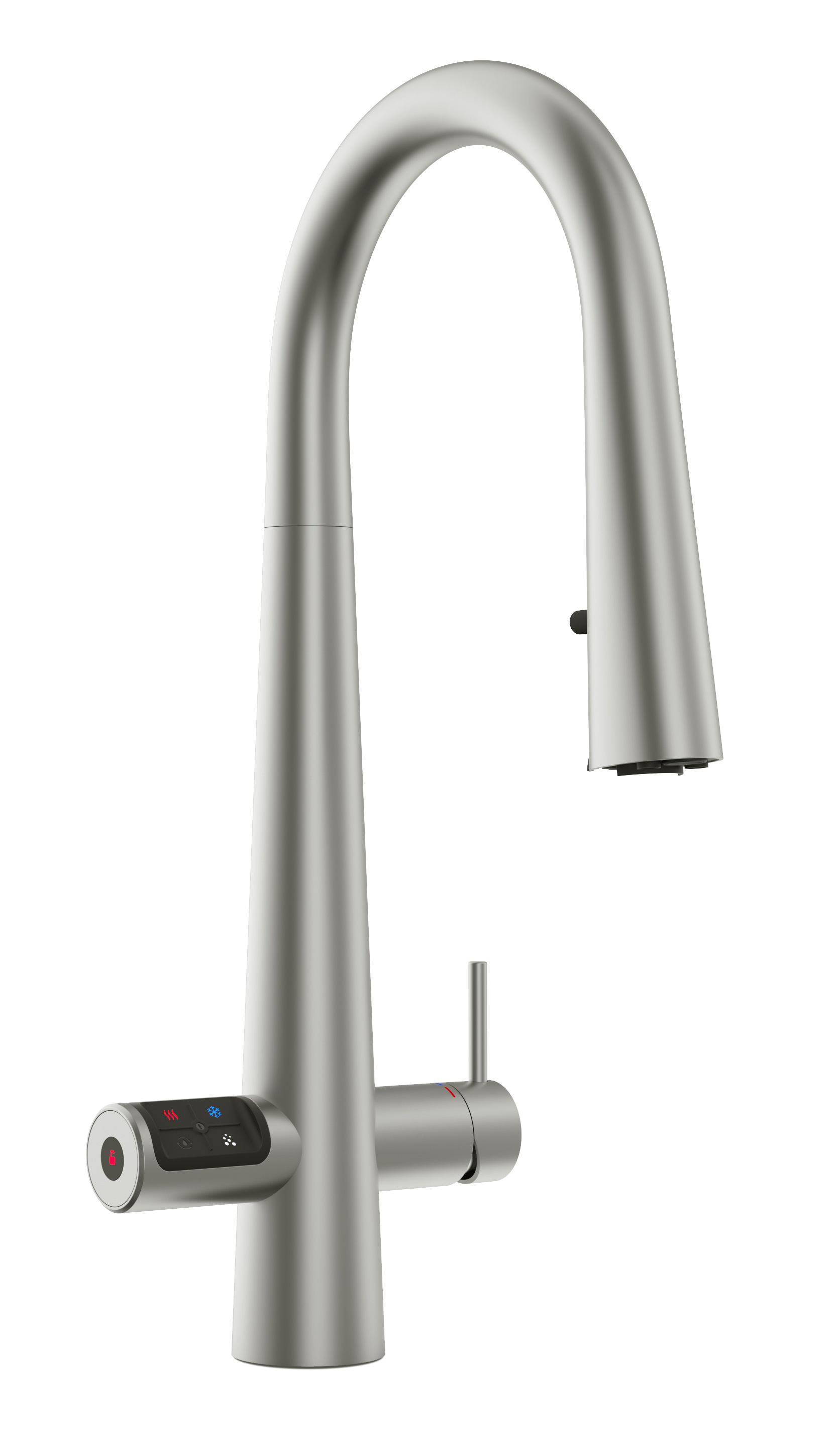

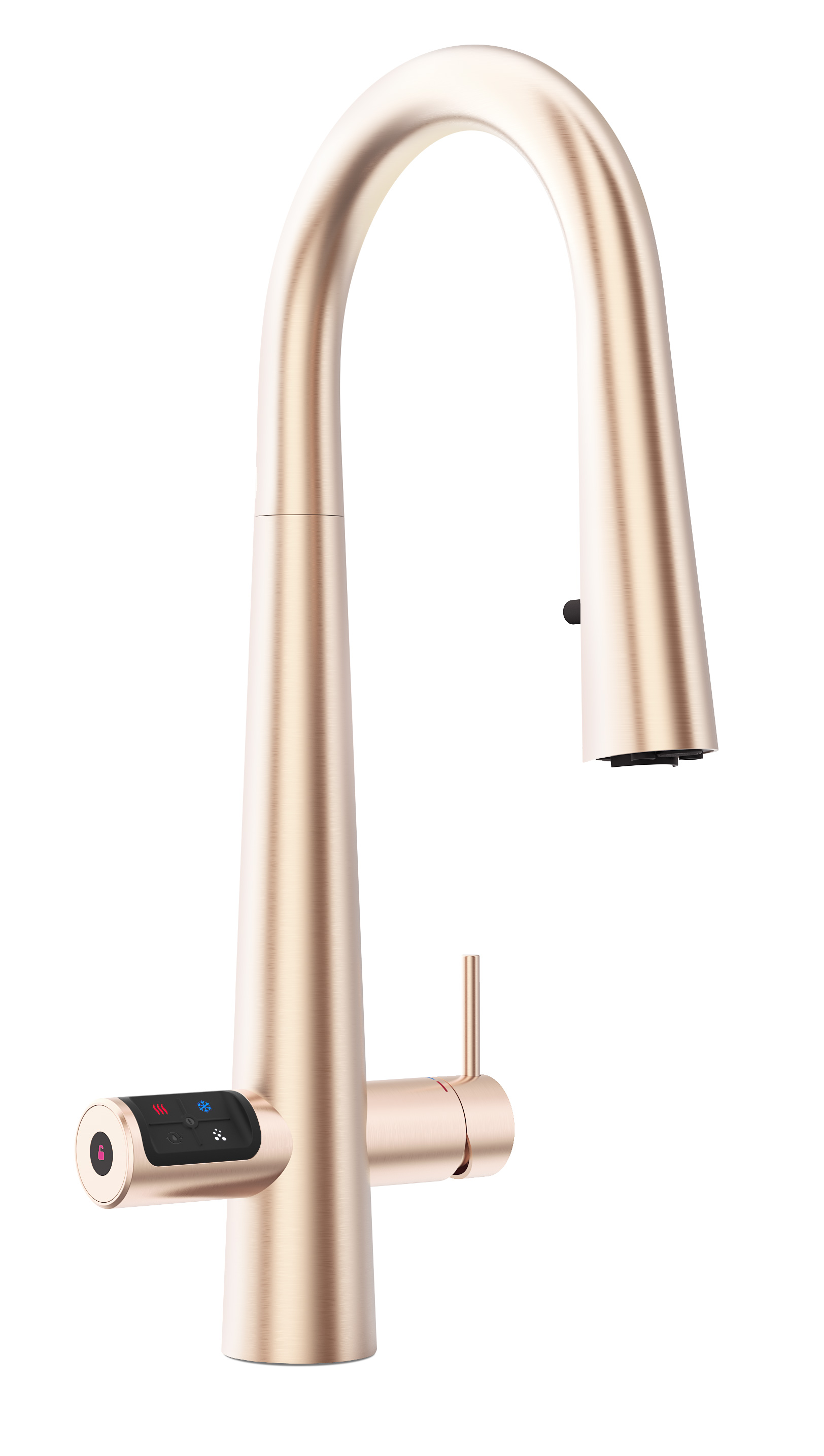

Finish

Please select a finish in order to add the item to cart.

RRP $ 9695 .00 incl. GST

This product is not available for online sale.
Please click the Find Your Specialist retailer button to find your local specialist showroom.

Boiling
Chilled
Sparkling
Filtered
Hot & Ambient
Unfiltered
H5X783Z00NZ

Zenith HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out Boiling, Chilled & Sparkling Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required) including the artfully incorporated pull-out sprayer for convenience. The intuitive touch-pad with antimicrobial protection operates the filtered drinking water, while the lever dispenses unfiltered hot and cold water. Enhanced sparkling water delivery every time with an optimised aerator hidden inside the elegant spout of the tap. The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and 2 disposable CO2 cylinders. This product is available from selected specialist retailers. Click the "Find your Specialist Retailer" link to find your local showroom.

Manufacturing Code
H5X783Z00NZ
Capacity
Residential

Product Details

Zenith HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out Boiling, Chilled & Sparkling Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required) including the artfully incorporated pull-out sprayer for convenience. The intuitive touch-pad with antimicrobial protection operates the filtered drinking water, while the lever dispenses unfiltered hot and cold water. Enhanced sparkling water delivery every time with an optimised aerator hidden inside the elegant spout of the tap. The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and 2 disposable CO2 cylinders. This product is available from selected specialist retailers. Click the "Find your Specialist Retailer" link to find your local showroom.

Specifications

Tap
Zenith HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out (Chrome)
Water Pressure
Min 250kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold and Hot
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
1.8kW 220-240V 50Hz
Power Supply
1 x 10 Amp socket outlet
Dimensions
W339mm x D460mm x H333mm
Product Approvals
WaterMark, RCM, ARC
Wels Rating
6 Star, 4.5 litres
Warranty
5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

  • Material Safety Data Sheet
  • Quick Guide
  • Instruction Manual
  • User Manual

Brochures

  • Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zenith HydroTap must be carried out by a Zenith Certified service technician, observing national and local regulations.

2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1 metre of the product.

3. Zenith HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.

4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.

5. If you live in a hard water area, we recommend installation of a Zenith scale filtration kit.

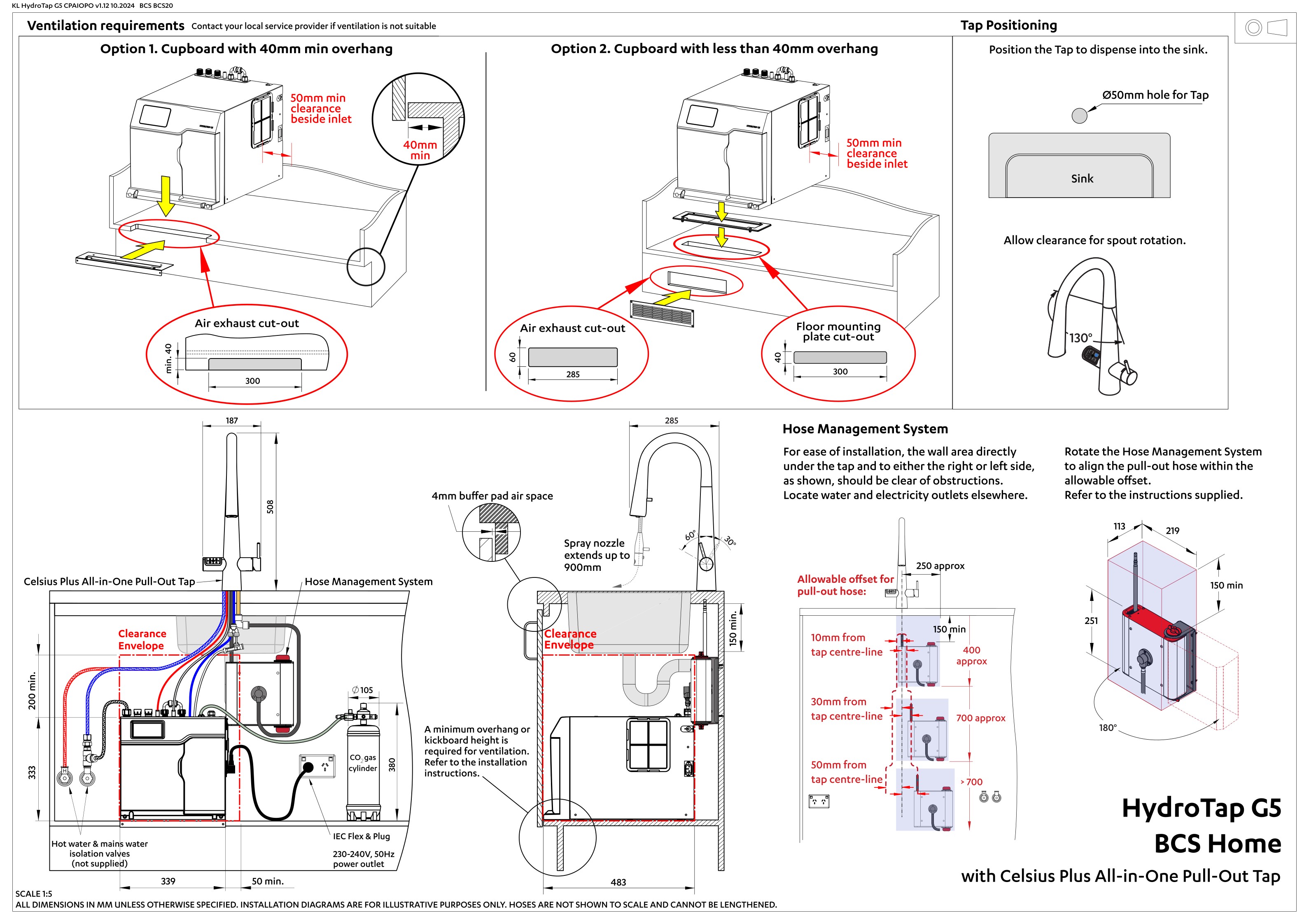

  • Installation Layout 3D/2D DWG
  • Installation Detail

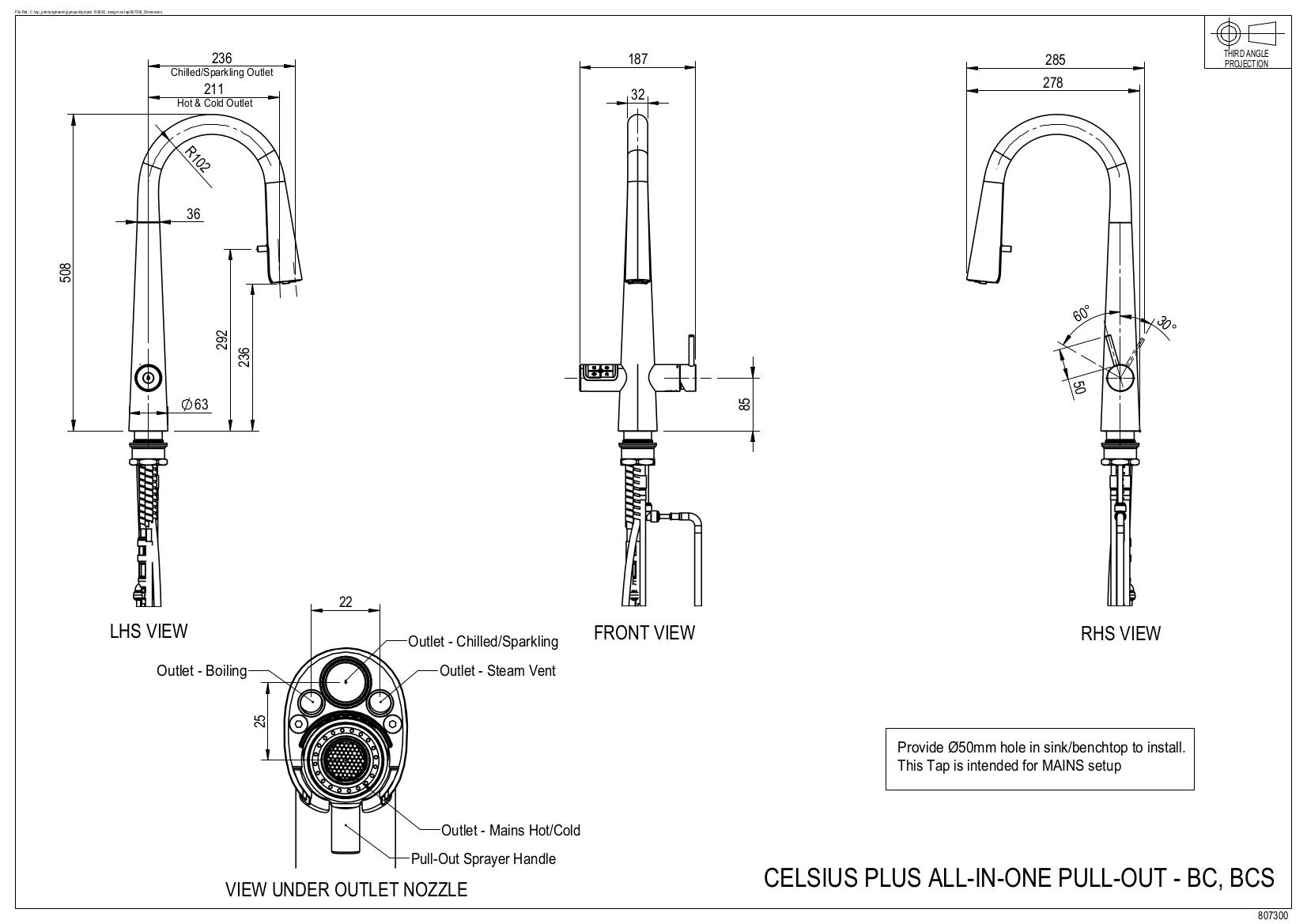

  • Tap Detail

Certifications

Filter Performance Images
Filter Performance Data
Health Safety Image
Health Safety Download
Environment ISO Image
Environment ISO Download
Quality ISO Image
Quality ISO Download
EPD Image
EPD Download
ARC Image
ARC Download
CE Image
RCM Image
Watermark
Environmental Product Declaration Brochure
Environmental Product Declaration
WELS Certification

BIM Files

  • ArchiCAD Swift Globals Library
  • ArchiCAD Zenith Water Library
  • Revit Family
  • Revit Virtual Showroom Project File
